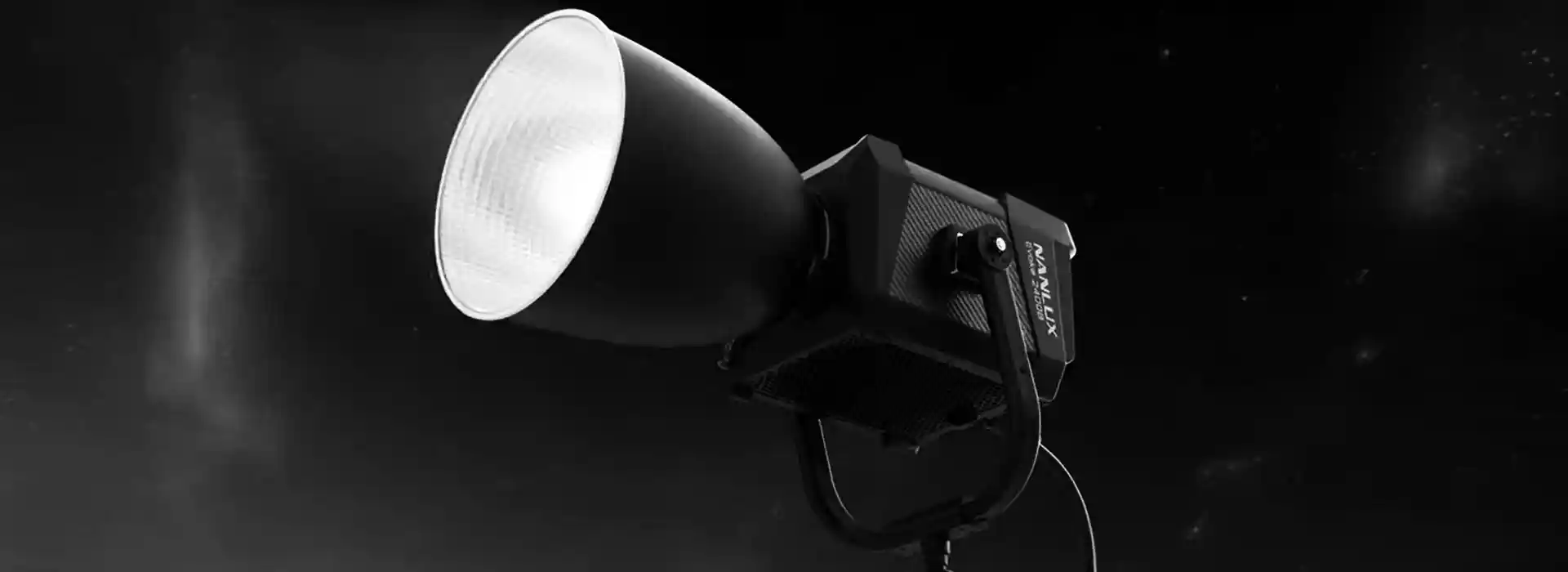

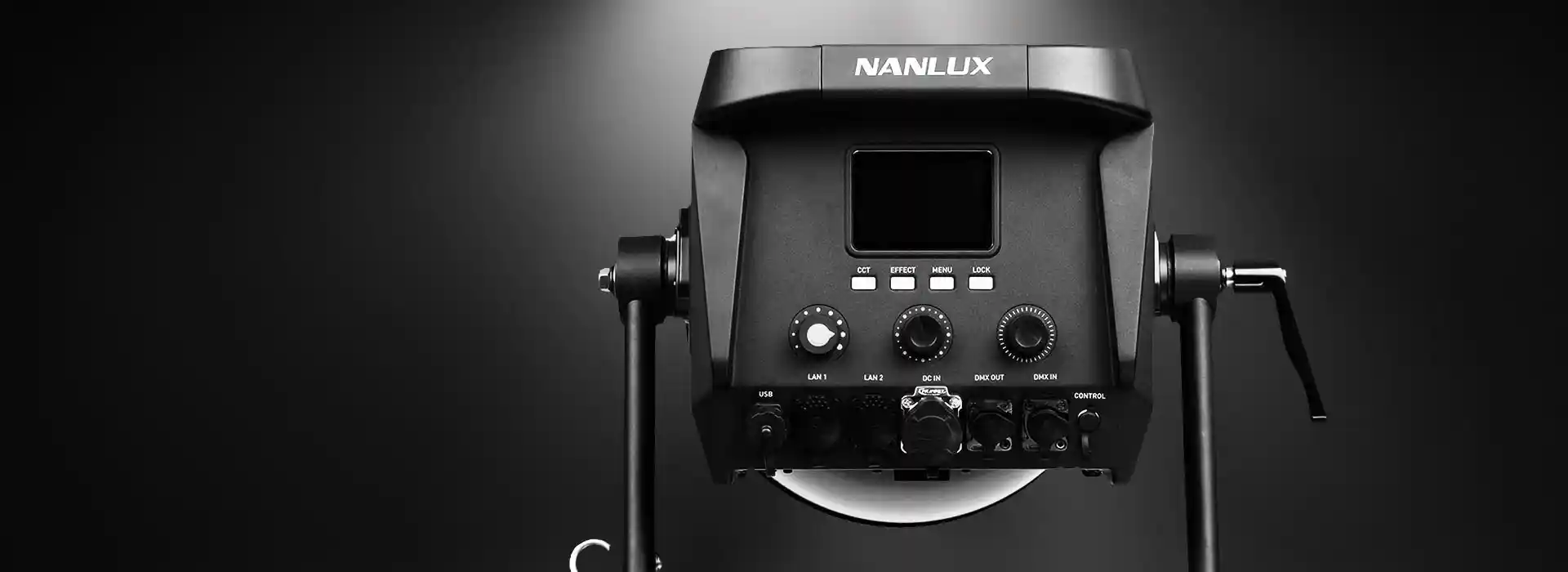

Nanlux Evoke 2400B
The Evoke 2400B provides exceptional LED efficiency, producing a light output that exceeds the capabilities of a 4KW HMI or 10KW Tungsten. Compared to traditional lighting, the Evoke 2400B offers key advantages, such as no need for preheating or cool-down times, flicker-free operation, smooth dimming from 0.0% to 100.0%, and adjustable colour temperatures.
- Yoke
- 2400W Fixture head
- Protective Lens Cap
- Power Supply
- 45° Reflector
- Quick Release Clamp
- DC Connection Cable (7.5m)
- AC Power Cable (3m)
- Flight Case
- CRI 96
- Colour Bi-colour
- CCT Range 2700K-6500K (G/M ± 80)
- Max Flicker-Free FPS 20,000 FPS
- Input Voltage DC48V/26A x2, AC100-240V 50/60Hz 26A Max
- Dimming 0-100% in 0.1% increments
- Connectivity LumenRadio CRMX, Remote, Control, 2.4G Bluetooth via Nanlink App, DMX/RDM, Art-Net/sACN

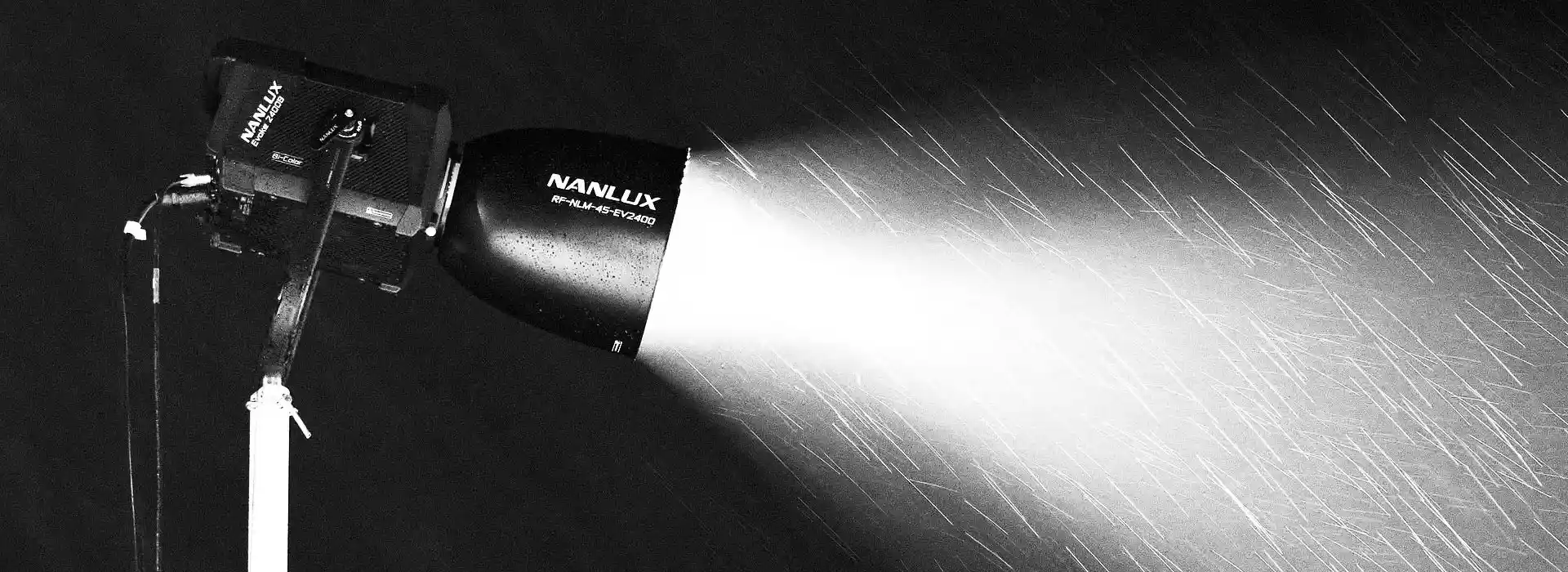

- IP Rating 55
- Rated Power 2400W
- Dimensions 427.3 x 316.4 x 265.1mm; PSU 389.2 x 172.2 x 268.3mm
- Weight Light fixture 15kg; PSU 11.58kg
- Mount NL
- 41 910 lux @ 3m with 45° reflector at 5600K
- Fl-35-E Fresnel Lens
- Projection Attachment 15-30°
- Lantern Softbox 120cm
- Parabolic Softbox 120cm
Kit includes:
- Yoke
- 2400W Fixture head
- Protective Lens Cap
- Power Supply
- 45° Reflector
- Quick Release Clamp
- DC Connection Cable (7.5m)
- AC Power Cable (3m)
- Flight Case
Specifications:
- CRI 96
- Colour Bi-colour
- CCT Range 2700K-6500K (G/M ± 80)
- Max Flicker-Free FPS 20,000 FPS
- Input Voltage DC48V/26A x2, AC100-240V 50/60Hz 26A Max
- Dimming 0-100% in 0.1% increments
- Connectivity LumenRadio CRMX, Remote, Control, 2.4G Bluetooth via Nanlink App, DMX/RDM, Art-Net/sACN
- IP Rating 55
- Rated Power 2400W
- Dimensions 427.3 x 316.4 x 265.1mm; PSU 389.2 x 172.2 x 268.3mm
- Weight Light fixture 15kg; PSU 11.58kg
- Mount NL
- 41 910 lux @ 3m with 45° reflector at 5600K
Accessories on request:
- Fl-35-E Fresnel Lens
- Projection Attachment 15-30°
- Lantern Softbox 120cm
- Parabolic Softbox 120cm
