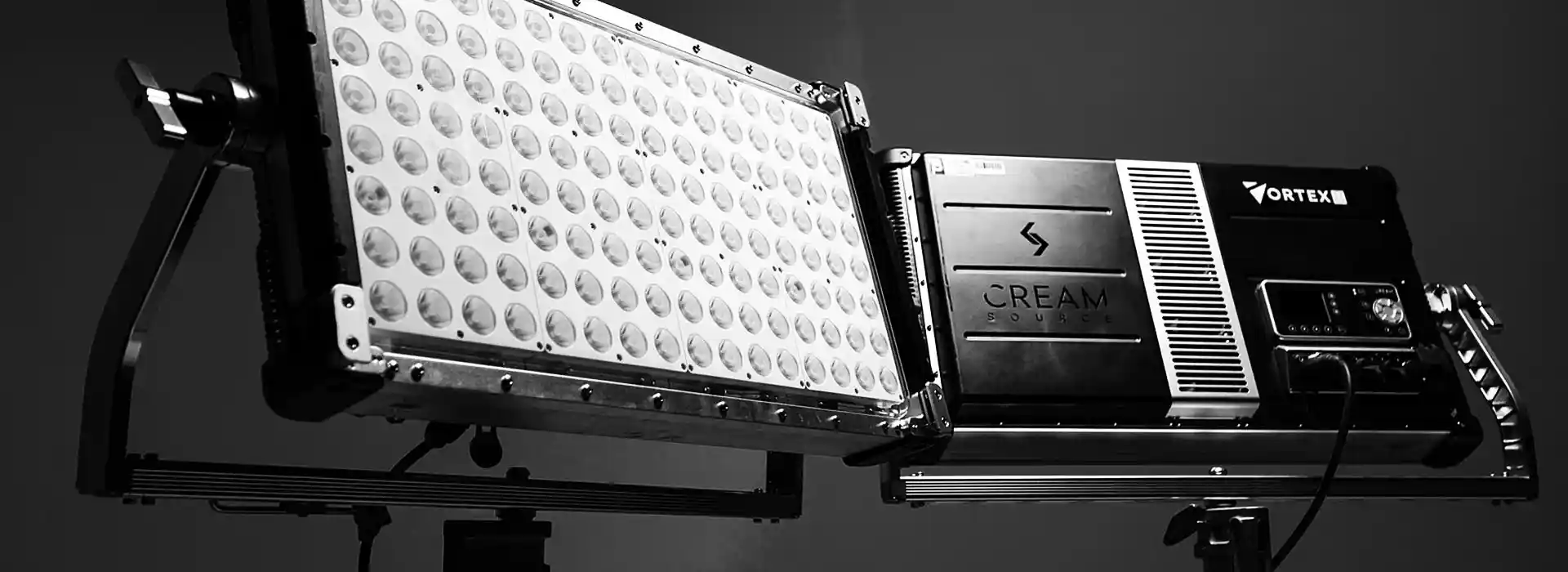

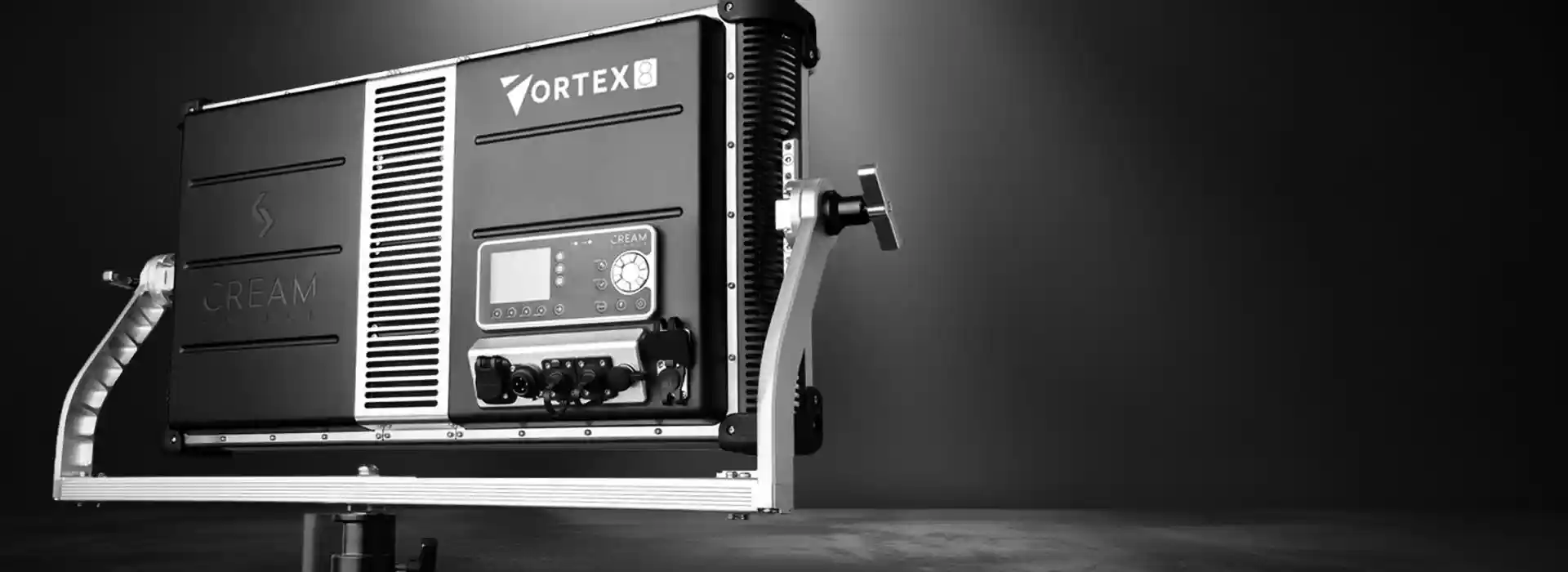

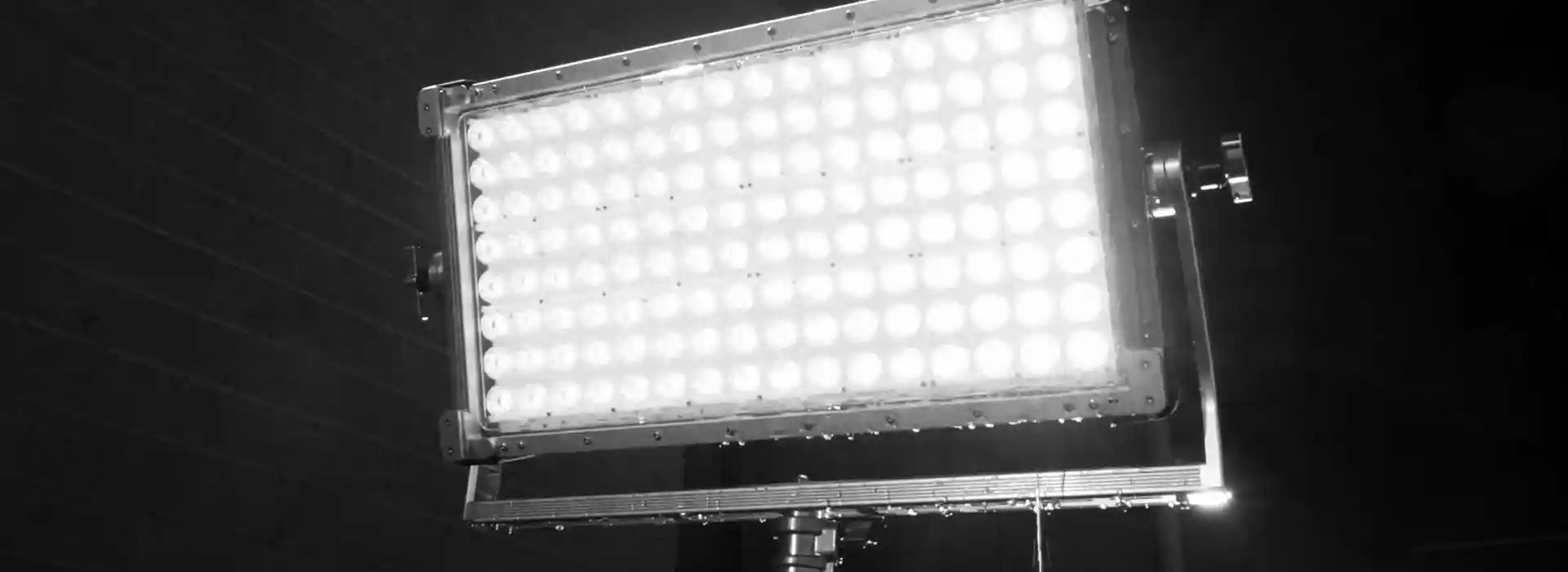

Cream Source Vortex 8

The Creamsource Vortex 8 is a 650W RRGBBW LED panel designed with a rugged build keeping versatility in mind. It can be used as a hard punch light to bounce or as a soft light with the Creamsource Dome or DoPchoice Snapbag. Effects and colour Gels are built into the latest CreamOS architecture, allowing you to make full use of an 8-pixel system.

This fixture eliminates concerns about unpredictable weather and messy effects machines for the lighting department. Its IP65 water resistance and sealed design provide top-tier protection and efficiency, allowing it to perform reliably in rain, snow, and dusty conditions. No matter the elements, the Vortex8 remains unaffected, ensuring consistent lighting performance.

  • Yoke
  • 650W Fixture head
  • Diffusion Panel
  • AC Power Cable
  • Flight Case
  • CRI 95
  • Colour RRGBBW
  • CCT Range 2200K-15000K
  • Max Flicker-Free FPS 5,000 FPS
  • Input Voltage AC100-240V 50/60Hz 8A Max
  • Battery Input: 48V DC 13A Max
  • Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve
  • Connectivity LumenRadio CRMX, 2.4G Bluetooth, Wi-Fi, USB Type-A, DMX/RDM, Art-Net/sACN, CreamSource accessory port
  • IP Rating 65
  • Rated Power 650W
  • Beam Angle 20°
  • Dimensions 690 x 380 x 121 mm
  • Weight Light fixture 15.9kg; Yoke 1.9kg
  • 13 900 lux @ 3m at 5600K
  • Dome Diffuser
  • DOP Choice Snapbag
  • DOP Choice Snapgrid 40° for Snapbag
  • DOP Choice Snapgrid 40° for Dome
  • 3-UP Multi Fixture Yoke
Kit includes:
  • Yoke
  • 650W Fixture head
  • Diffusion Panel
  • AC Power Cable
  • Flight Case
Specifications:
  • CRI 95
  • Colour RRGBBW
  • CCT Range 2200K-15000K
  • Max Flicker-Free FPS 5,000 FPS
  • Input Voltage AC100-240V 50/60Hz 8A Max
  • Battery Input: 48V DC 13A Max
  • Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve
  • Connectivity LumenRadio CRMX, 2.4G Bluetooth, Wi-Fi, USB Type-A, DMX/RDM, Art-Net/sACN, CreamSource accessory port
  • IP Rating 65
  • Rated Power 650W
  • Beam Angle 20°
  • Dimensions 690 x 380 x 121 mm
  • Weight Light fixture 15.9kg; Yoke 1.9kg
  • 13 900 lux @ 3m at 5600K
Accessories on request:
  • Dome Diffuser
  • DOP Choice Snapbag
  • DOP Choice Snapgrid 40° for Snapbag
  • DOP Choice Snapgrid 40° for Dome
  • 3-UP Multi Fixture Yoke
